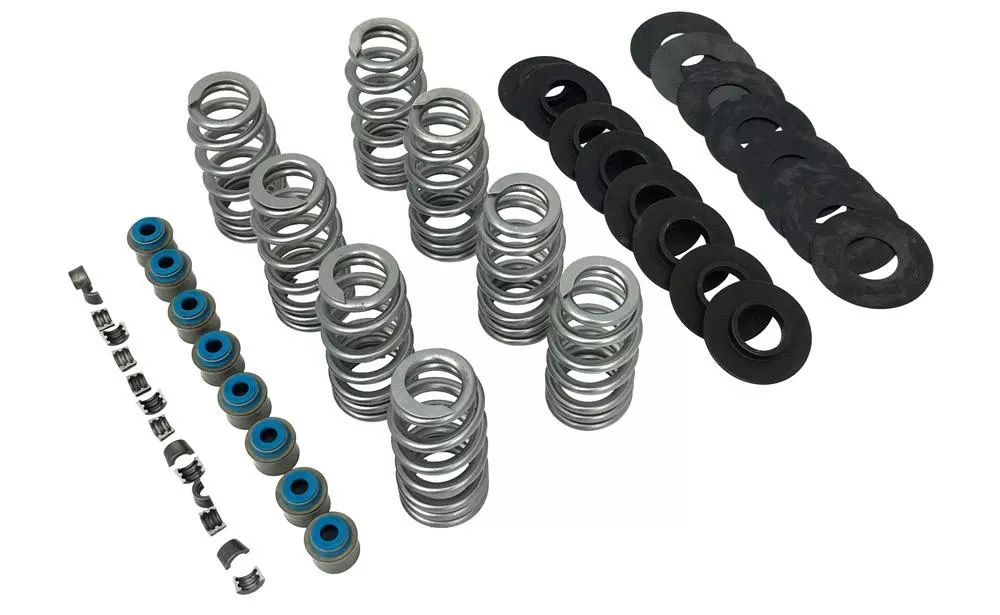

Feuling ENDURANCE BEEHIVE Valve Springs with Ti retainers for ’17-Up Harley Davidson M-Eight Engines

Description

Feuling ENDURANCE BEEHIVE Valve Springs with Ti retainers for ’17-Up Harley Davidson M-Eight Engines

FEULING ENDURANCE BEEHIVE valve springs are a direct bolt in replacement, no spring seat or rocker cover machining required. Endurance springs are machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance.• FEULING BEEHIVE valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs.• Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics!• Available for 5/16, 7mm and 6mm valves• FEULING BEEHIVE valve springs are packaged as a matched set and must be installed at the correct OPEN HEIGHT. Matching max cam lift to the open height spec of the valve springs is essential for optimal valve-train operation and spring life. See included spring spec chart• FEULING® endurance springs are a direct bolt-in replacement on EVO/Twin Cam up to 650 cam lift and Milwaukee Eight up to 565 cam lift with no machining or rocker box clearancing required.Kits include: matched set of FEULING ENDURACE BEEHIVE valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton valve seals equipped with a spring loaded valve stem wiper system.Quicker Revving – Smoother Motion – Light Weight Ti Retainers – Bolt in up to 650 Lift on EVO/TC – 565 lift for M8SEAT Lbs. / INSTALLED HEIGHT134 Lbs. @ 1.375 (0.405 Lift)127 Lbs. @ 1.405 (0.435 Lift)125 Lbs. @ 1.415 (0.445 Lift)121 Lbs. @ 1.435 (0.465 Lift)116 Lbs. @ 1.455 (0.485 Lift)113 Lbs. @ 1.470 (0.500 Lift)109 Lbs. @ 1.490 (0.520 Lift)103 Lbs. @ 1.520 (0.550 Lift)226 Lbs @ 0.970 OPEN HEIGHTCoil Bind @ .920*Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio

 Fitment: M8 17-19, stock 6mm valve stems with triple groove, this kit includes Ti Retainers, Stock & SE heads
