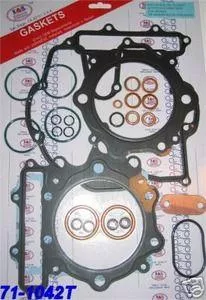

GASKET TOP SET 89-00 XR600

Description

This K&S Technologies gasket set is used during a top end rebuild on compatible Honda XR models, replacing the upper engine gaskets, sealing washers, O-rings and valve stem seals disturbed during cylinder head, cylinder and valve train service.

Kit Contents

• 1 x Cylinder head gasket for Honda XR600R applications
• 1 x Cylinder head gasket for Honda XR650L applications
• 1 x Cylinder base gasket
• 1 x Cylinder head cover gasket
• 4 x Valve stem seals
• 2 x Exhaust pipe gaskets
• 1 x Muffler lid gasket
• 2 x Air path pipe gasket/washers for Honda XR650L applications
• 4 x Valve guide O-rings
• 4 x Tappet cap O-rings
• 1 x Carburettor insulator O-ring
• 1 x Tensioner shaft O-ring
• 1 x 6.5 mm sealing washer
• 4 x 14 mm camshaft sealing washers

Specifications

• Valve guide O-ring size: 10 x 1.6 mm
• Tappet cap O-ring size: 39.5 x 2.6 mm
• Tensioner shaft O-ring size: 14.5 x 2.4 mm
• Sealing washer size: 6.5 mm
• Camshaft sealing washer size: 14 mm
• Selected gaskets are supplied with silicone line coating

Cross-Reference OEM Part Numbers

• K&S Technologies: 52-1208

Vehicle Fitments

• Honda XR600R: 1989-2000
• Honda XR650L: 1993-2008
